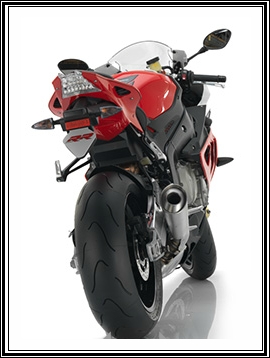

2012 BMW S1000RR Specifications
Engine
- Type Water/oil-cooled 4-cylinder 4-stroke in-line engine, four titanium valves per cylinder, two overhead camshafts
- Bore x stroke 80 mm x 49.7 mm
- Capacity 999 cc
- Rated output 193 hp (142 kW) at 13.000 rpm
- Max. torque 83 lb/ft (112 Nm) at 9.750 rpm
- Compression ratio 13.0 : 1
- Mixture control / engine management Electronic injection, digital engine electronics with integrated knock control (BMS-KP)
- Emission control 2 closed-loop 3-way catalytic converters, EU-3 norm with electronically controlled interference pipe and acoustic valves
- Maximum speed over 120 mph
- Fuel consumption per 100 km at constant 90 km/h Fuel Economy: 41 mpg, at a constant 55 mph
- Fuel consumption per 100 km at constant 120 km/h
- Fuel type Premium unleaded.
- Alternator Three-phase alternator 350 W
- Battery 12 V / 10 Ah, maintenance-free
- Clutch Multiplate clutch in oil bath, anti-hopping clutch, mechanically controlled
- Gearbox Constant-mesh 6-speed gearbox, straight-toothed
- Drive Chain
- Frame Aluminum composite bridge frame, partially self-supporting engine
- Front wheel location / suspension Upside-down telescopic fork Ø 46 mm, compression and rebound stage adjustable
- Rear wheel location / suspension Aluminum 2-sided swing arm, compression and rebound damping, high and low speed adjustable
- Suspension travel front / rear 4.7"/5.1"
- Wheelbase 56"
- Castor 3.9" (98.5 mm)
- Steering head angle 65,99°
- Wheels Aluminum cast wheels
- Rim, front 3.50 x 17"
- Rim, rear 6.00 x 17“
- Tyres, front 120/70 ZR 17
- Tyres, rear 190/55 ZR 17
- Brake, front twin disc brake, floating brake calipers, 4-piston fixed caliper, diameter 320 mm, 5 mm thick
- Brake, rear Single disc brake, single piston floating caliper, diameter 220 mm, 5 mm thick
- ABS BMW Motorrad Race ABS, disengageable, 4 modes to select: Rain, Sport, Race, Slick (optional equipment)
- Length 80.9"
- Width (incl. mirrors) 32.5"
- Height (excl. mirrors) 44.8"
- Seat height, unladen weight 32.3"
- Inner leg curve, unladen weight
- Unladen weight, road ready, fully fuelled 1) 451 lbs (incl. Race ABS)
- Dry weight 2) 398 lbs (incl. Race ABS)
- Permitted total weight 893 lbs
- Payload (with standard equipment) 442 lbs
- Usable tank volume 4.6 US Gallons
- Reserve approx. 1 US Gallon
